Quick Details

  • Type: Coating Machine, Coating Machine
  • Condition: New, New
  • Application: Machinery & Hardware, BOPP ADHESIVE TAPE, BOPP ADHESIVE TAPE
  • Automatic Grade: Automatic, Automatic
  • Driven Type: Electric
  • Voltage: 3 PHASE 380V 50HZ
  • Power: 120KW
  • Packaging Type: WOODEN
  • Packaging Material: Plastic, Wood, Other
  • Place of Origin: Guangdong, China (Mainland), Guangdong China
  • Brand Name: XINWANG
  • Model Number: XW-1300
  • Dimension(L*W*H): according to actual situation
  • Weight: 40 TONS
  • Certification: ISO9001, ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Usage: Acrylic adhesive Tape
  • Brand: XINWANG
  • VOLTAGE: 3 PHASE 380V 50HZ
  • capability: max speed 350m/min

Packaging & Delivery

Packaging Details Seaworthy packing for Coating Machine
Delivery Time 75working days after got the deposit



Product Description:

Hot Sale 1300mm High Speed Energy Saving  BOPP Adhesive Tape Mayer Bar Coating Machine

1. Usage:

Coating Machine is suitable for coating self-adhesive tape from BOPP film to BOPP Tape Jumbo roll .



2. Feature of  Coating Machine

1) Provide heating type as steam heating ,hot-blast stove heating ,heat transfer oil , electrical heating etc.

2) High Speed and high quality

3) Auto.tension control

4) PLC implement and Touch Screen complete Automatic operation

3) Auto EPC device for unwind and rewind .

4) Automatic temperature control

5) Environmental and Outstanding Appearance



3. Advantage of  Coating Machine

For the trend of BOPP Adhesive Tape Coating Machine , it is high speed and evergy saving.

It is what we do now.



1) Thickness, speed and temperature

For example : to coat 23u drying glue, the max.coating speed can be 305m/min and temperature can keep 105 degree centigrade, to reach the evergy saving effect.



2) The coating precision:can reach at ±1um

 The correct precision:can reach at ±1mm

 The rejection rate 0.125%(only produce 5m waste per 4000m)



3) Energy Saving drying box which can help clients save about USD90000 cost per year per pcs

 (such as heat energy  electric energy  labour cost  wastage ) etc



Technical Parameters  of  Coating Machine

Name

 High Speed Energy Saving  BOPP Adhesive Tape Mayer Bar Coating Machine

Material

BOPP ADHESIVE TAPE ,BOPP PACKING TAPE

OPP TAPE JUMBO ROLL

Voltage(V/Hz)

3Phase  380V 50HZ (or as customer’s)

Effective work width

1300mm/ 1600mm

Max.unwinding diameter

Φ700mm (Max.BOPP Tape Jumbo roll length: 4000meters)

Max.rewinding diameter

Φ800mm

Inner diameter of core

76.5mm to 76.8mm

Heating System

As clients

BOPP Adhesive Tape Coating Machine

Max.Machine speed

250m/min(as 15u)

300m/Min(as 15u)

350m/min (as 15u)

Packaging & Shipping

Production Time : 75 to 90 days after receiving the deposit ( for  Coating Machine)

Package type: seaworthy package

BOPP Adhesive Tape Coating Machine Size: about 4 container



Coating Machine, Slitting Machine ,Cutting Machine, Rewinding Machine, Lamination Machine etc Loading Container Picture



Our Services

 1) 12 months warranty (except for spare parts)

2) Online service

3) Providing BOPP Adhesive Tape Coating Machine free quick-wear parts

4) Engineers available to install the machine

5) BOPP Adhesive Tape Coating Machine Product certificated by ISO9001



Company Information

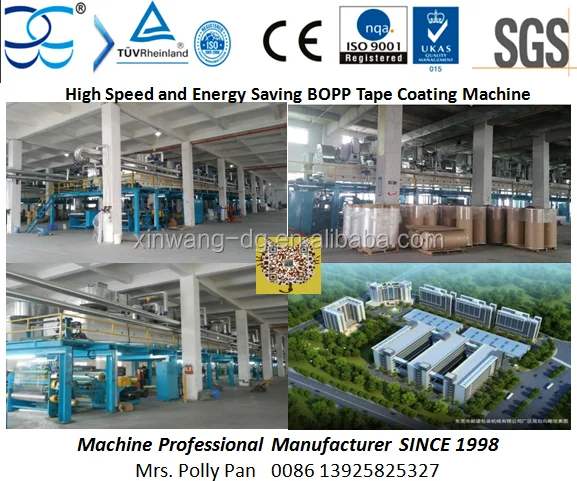

XinWang Company Picture and Production Workshop



Certification of Machine

Package Machine Production Workshop

 High Speed Energy Saving  BOPP Adhesive Tape Mayer Bar Coating Machine in customer factory



 High Speed Energy Saving  BOPP Adhesive Tape Mayer Bar Coating Machine in Xinwang factory

FAQ

Question 1 :Are you a manufacturer or trading company?

 A:We are manufacturer and sell the package machine since 1998

We can export the machine by ourselves.

If you need, we also can help to export the tape for you.



Question 2: Where is your factory ?

 A: We are in Dongguan City, Guangdong Province

Near Guangzhou and shenzhen city, HONGKONG etc .

It is very convenient by train from guangzhou train station or shenzhen luohu train station to dongguan changping train station. (about 40mins) .We will pick you up in dongguan changping train station.  Please keep in my mobile: 0086 13925825327 and inform me in advance when you plan to visiting.



Question 3:Can I see the running machine in your factory?

 A:First we can show you our machine video for your reference. which was take in our customer there or our factory when customer visiting and testing the machine

If we have same kind of machine producing in factroy,we can show you if there are material.

If not,we will try to check our customer who has bought our machine , to allow you to visit our machine in their factory.



Question 4: What is the machine voltage?

A: We produce machine voltage usually is 3Phase 380V 50HZ.

If there are any special , just let me know first so that I can confirm to you.



Q6: How about your quality?

A: We do the machine since 1998 . We have 2 factory in the moment.

1 is for producing the coating machine and 1 is for manufactur the small machine .

Warm welcome to visit us for inspection.



For BOPP Tape Coating Machine ,Please kindly let me know the following basic information

 1) The base material

 2) The width

 3)Max.unwinding and rewinding dia

 4) What is the thickness you want to coat?

 5) Heating method

 6) Coating speed etc





For Coating Machine, Welcome for your any question .
