Quick Details

  • Type: Other
  • Condition: New
  • Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Other
  • Packaging Type: Film, Other
  • Packaging Material: Plastic, Wood
  • Automatic Grade: Automatic, High Automatic
  • Driven Type: Electric, Electricity
  • Voltage: 3 phase 380 V 50Hz
  • Power: 5kw
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: XINWANG, XINWANG
  • Model Number: XW-703,704
  • Weight: 1900KG
  • Dimension(L*W*H): 3150*1300*1440mm
  • Certification: ISO9001: 2000/ CE/SGS/Bureau Veritas, SGS/ISO9001:2008/CE/BV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: One year
  • Tension control: Automatic
  • After-sales Service: Guaranteed
  • PLC control: Optional
  • Name: Kapton Tape Masking Tape roll cutter machine

Packaging & Delivery

Packaging Details Wooden Package for Kapton Tape Masking Tape roll cutter machine
Delivery Time 35days after get the deposit
Product Description

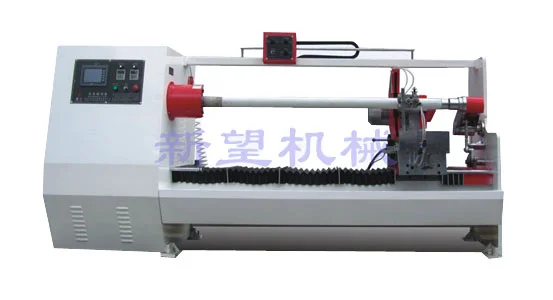

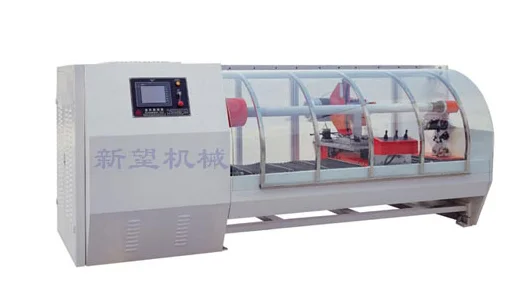

Kapton Tape Masking Tape roll cutter machine


Any about the machine. Welcome to Contact: Mrs PollyPan

Whatspp: +86 13925825327 Wechat: polly2009 SKYPE: LQ1418

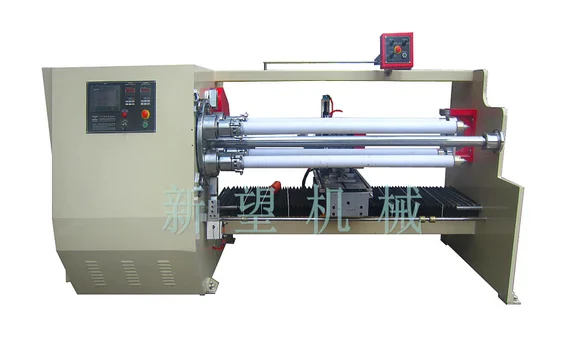

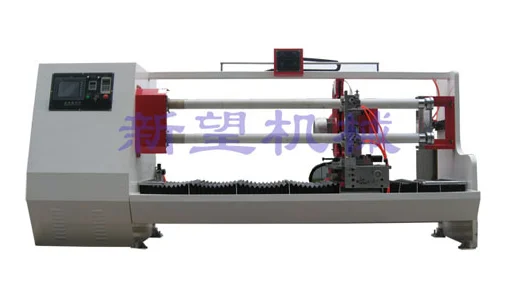

China manufacturer high speed automatic four shafts masking tape cutting machine

Product Application

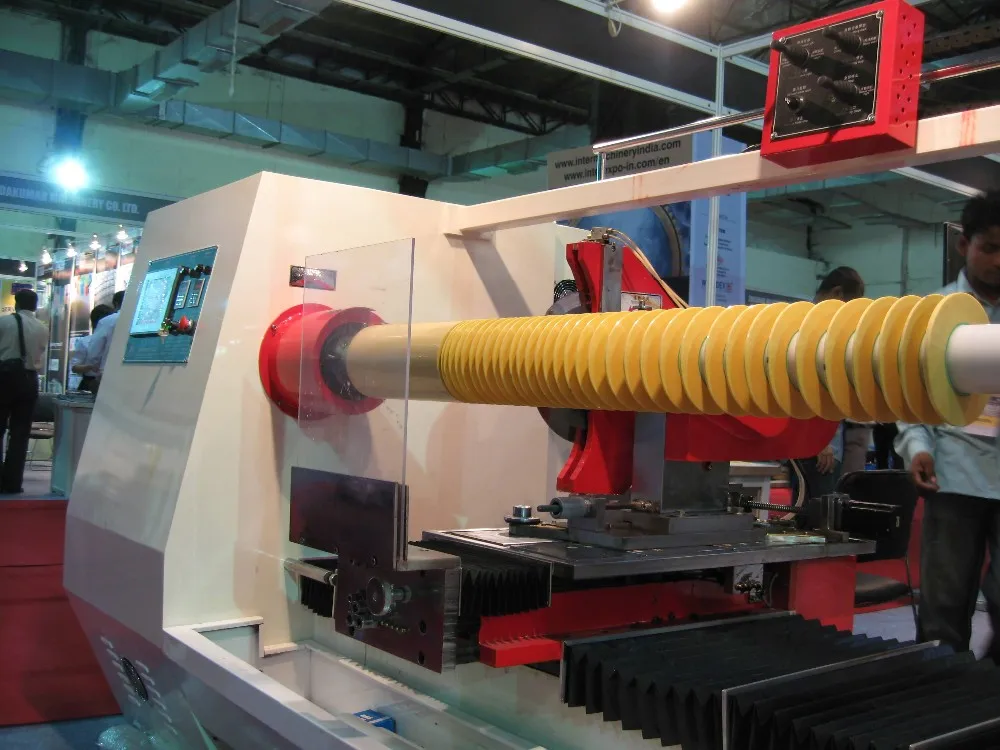

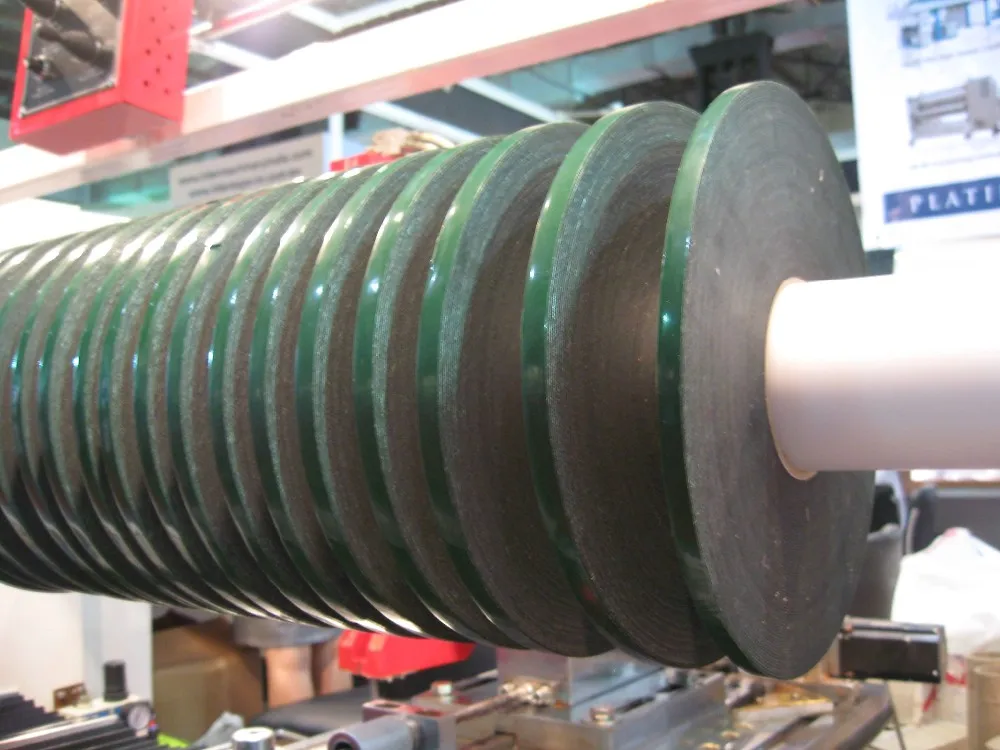

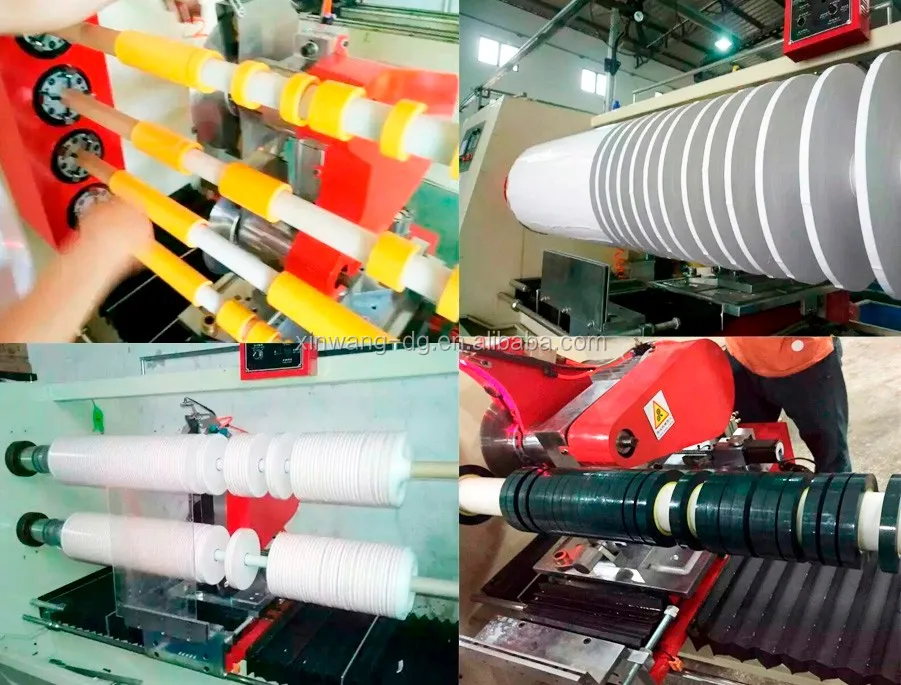

Xinwang Automatic Tape Cutting Machine is applicable for all kinds of top grade tapes.Especially the high-grade Tapes need high-precision cutting.Such as electrical tapes, high temperature tapes, green PET tape, PI KApton Tape, as well as foam and paper tape, OPP, BOPP adhesive tapes, Duct cloth tape, PVC tape, masking tape, double-sided tape. Sometimes, the log roll automatic cutter machinery can also be used for non-adhesive roll prodcuts, such cloth stripes, ribbons and so on.


Material: BOPP ADHESIVE TAPE .ETC
Voltage(V/Hz) 3Phase 380V 50HZ
Effective work width    1300mm/ 1600mm
Max.cutting diameter   Φ300mm
Inner diameter of core:Φ76mm~Φ77mm
Min.slitting width:0.5mm (please confirm)


Main Features
1.Main driving part: AC motor with frequency converter is employed. The acceleration and the deceleration are fast and steady.
2. Central control unit: programmable central control is used and various sizes can be set on the same shaft for automatic transfer and cutting.
3. Operating panel: all functions are operated on the LCD touch panel.
4. Motor control system: the central control system is PLC programmable controller. Various sizes can be set on the same shaft, and the cutting width is adjusted automatically.
5. Cutting positioning system: cutting positioning is controlled by servo motor. The imported high precision enlarge to 32mm ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
6. Blade feeding positioning system: blade feeding is controlled by servo motor, and the cutting speed is adjustable in three stages. The efficiency is improved and the best quality is guaranteed.
7. Auto angle adjustment of circular blade:servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.
8. Quick shaft change system: three kinds of shafts are available and quick change of shafts is applied for different materials.


==================================================================================

A.  BOPP Tape Slitting Series

The XW-202/210/20-8 BOPP Printing Tape Slitting Machine Manufacturer, BOPP Printing Tape Slitting Machinery Supplier are suitable for slitting many kinds of self-adhesive tape like BOPP adhesive packing tape and cellophane paper tape, which are mainly the XW-202, XW-210 and XW-210-8, but to improving the production efficiency, some other ancillary machines are recomended, like the paper core loading machine, the paper core cutting machine and the doctor rewinding machine for the defective finished product amending;

XW-202 BOPP Tape Slitting Machine(Standard)

 is specially designed for the self-adhesive tape production, adopting the flat pulling board device to eliminate the corrugating during the tape transporting, to lower the production noise. Using the frequency speed control and automatic length counter, It is not only with high efficiency, excellent braking performance and high accuracy, but also the electric control component and driving parts well protected by the frequency converter with self-protection function.

XW-210 BOPP Tape Slitting Machine(Popular)

for slitting many kinds of self-adhesive tapes, featured with one set pressure roller controlled by cylinder , which efficiently reducing the noise when the raw material stripping, and the equipped spreading roller can avoiding corrugating when the tape transporting. Different from the XW-202, the feeding unit is designed at the back, with nice and elegant appearance.

XW-210-8 BOPP Tape Slitting Machine(High Speed)

Compared with traditional slitting machine model structure, it is with technology innovations in higher speed and lower noise by equipping the raw material automatic moving left and right by electric control, sound proof housing for the raw material, automatic labeling, rewinding shaft prop up by air and the waste collected by winding. The production speed is 1.5 times faster than the previous models, the modular control not only lower the noise pollution of the machine and the labor intensity of the worker, but also improving the production efficiency.

XW-218 BOPP Tape Slitting Machine(Super Clear)

The advantage of this slitting machine is adhesive tape small rolls without air bubble, as the machine structure,there are pressure roller when rewinding. What is more, the pressure roller is one to one, the effect is very good .This is the best choice for customer to do super clear tape, BOPP ahesive tape

XW-215 BOPP Tape Slitting Machine(Stationery)

This slitting machine is special for slitting the stationery adhesive tape ,use with core loading machine together.
As stationery tape is small and narrow, we suggest this 1000meter effective work width.
It is more easy operation and good effect.

XW-216 BOPP Tape Slitting Machine(Fully Automatic)

This Fully Automatic BOPP Tape Slitting Machine composite different demands of customers.
Such as automatic loading BOPP tape Jumbo roll, automatic loading paper core , automatic cutting after finished ,automatic labeling and with soundproof cover ,350m/min high speed PLC control etc , this is the good choice for customer to save work cost for long term.

Ancillary Machines for the Slitting Line

XW-105 Paper Core Loading Machine

is designed for automatic loading and unloading of the paper core from the rewinding shaft assembled

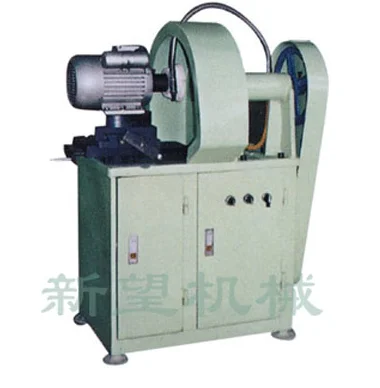

XW-203 Paper Core Cutting Machine

is used to cut the paper core into certain width, adopting mechanical cutting depth control, with precise cutting depth positioning and pneumatic circuit design to realize the automation.

XW-805A Mini Doctor Rewinder

is used to rewinding the defective adhesive tape.

Certifications
Company Information

Founded in 1998 with registered capital of CNY 20 million and covered the building area total 18000 square meters. It is certified by ISO9001:2008 International Quality Management System, as well as the CE, SGS, BV certificates. XINWANG as a famous provincial enterprise, honored with the Vice President of Dongguan Environmental Protection Packing Industry Association, Guangdong Packaging Technology of Standing Director Unit, Guangdong Provincial Non-Governmental-Run Science and Technology Enterprise, Guangdong Provincial Famous Trademark and High-tech Innovative Enterprise in China.


Main Products and Industry Applications:


Dongguan XIWANG Package Machine Co., Ltd is not only a domestic leading professional manufacturer but also a professional supplier for the oversea market which involved in research and development, production and sales on coating production line, adhesive tape equipment, slitting machine , cutting machine, rewinding machine, lamination machine, spiral paper core making machine etc. With growing needs of the industry and market, we have also extended our products series in three different industries,Packaging Materials, Electronic Materials, Optical film Materials and other new industrial materials.

Our Service
 What Can We Do For You?
1 machine technology guidance
2 Installation ,testing and debug
3 trial production in your factory
4 raw materials support, introduce suppliers
5 technicians' training
6 help to purchase raw materials
7 cost analysis
8 other necessary support and after-sale service

Packing & Delivery
Packaging
Delivery Time:
20 to 35 working days after receipt of  down-payment
Packaging Type:
Seaworthy wooden case
Shipment Arrangements
As per delivery terms,FOB, CNF, CIF, DDP, DDU etc are available, or as per customer's request, we can provide shipment arrangements.
